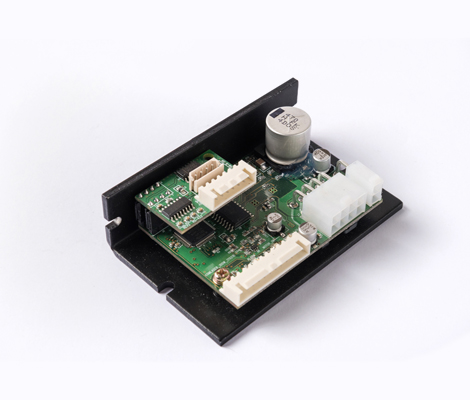

BLDC Motor Drive with DC Input (D01)
24 VDC
100W
Application
- Smart tolling system
- Automation equipment
- Health-care machine
Feature
- Speed control & current limiting function
- Convenient driving
- Operation and setting by the dedicated loader
Specification
| Item description | D01 |
|---|---|
| Rated current [A] | 5 |
| Maximum current [A] | 10 |
| Power supply | 24VDC ± 10% |
| Control function | Speed control, 300 ~ 5,000 rpm |
| Control method | Trapezoidal PWM Control |
| Input signals | F/R, SVON, Alarm RST, Run/Stop |
| Output signals | Speed Out, Alarm Out (Open collector type) |
| Protective functions | Over-current, Under/Over-voltage, Hall sensor error |
| Feedback sensor | Hall sensor |

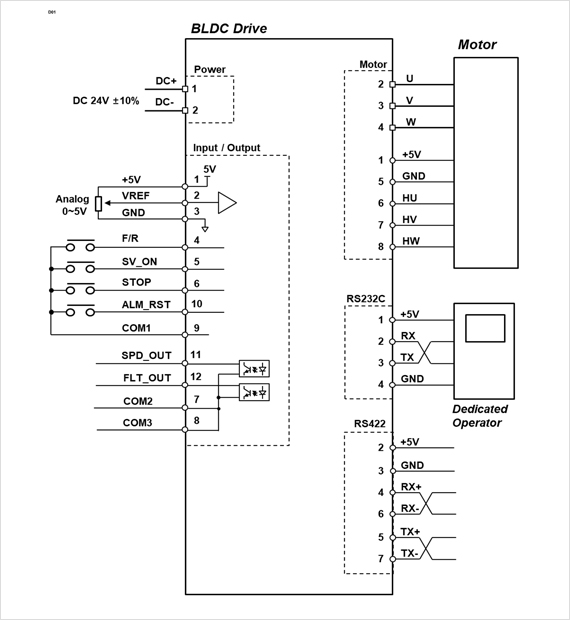

Connection diagram

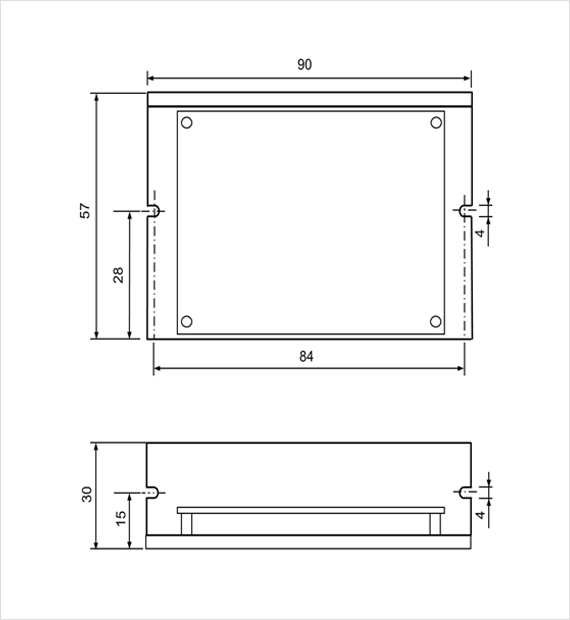

Dimension [mm]
