BLDC Motor Drive with DC Input (D20)
HOME·Products·Automobile, EV·

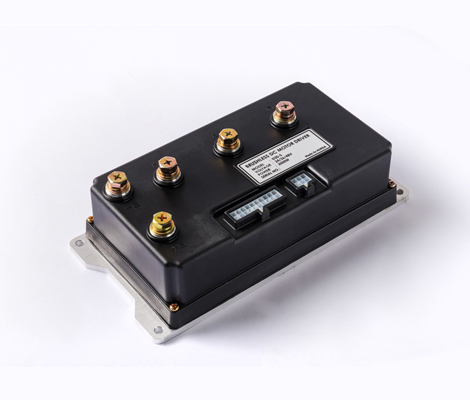

BLDC Motor Drive with DC Input (D20)
24~48VDC
1.5kW
Application
- Agricultural Machine
- Industrial Vehicle, Electric pallet truck
- AGV (Automated guided vehicle)
Feature
- External speed command
- Speed control & current limiting function
- Convenient driving
- Operation and setting by the dedicated loader
Specification
| Item description | D20 |
|---|---|
| Rated current [A] | 62 |
| Maximum current [A] | 150 (1min) |
| Power supply | 24 ~ 48VDC |
| Control function | Speed control, 100 ~ 5,000rpm |
| Control method | Trapezoidal PWM Control |
| Input signals | Throttle, F/R, Brake |
| Output signals | Open drain type Output (30A) 2 ports (Ext. Relay, Fan … etc.) |
| Protective functions | Over-current, Under/Over-voltage, Over-load, Over-heat, Hall sensor error |
| Feedback sensor | Hall sensor |
Connection diagram

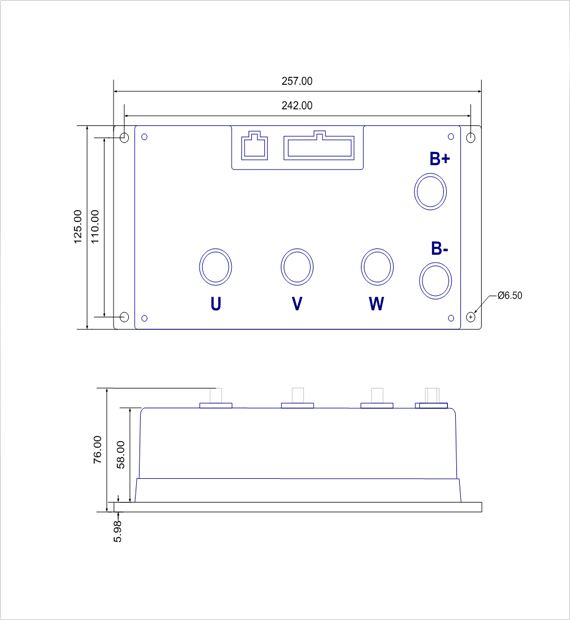

Dimension [mm]
