BLDC Motor Drive with DC Input (D05)
HOME·Products·Automobile, EV·

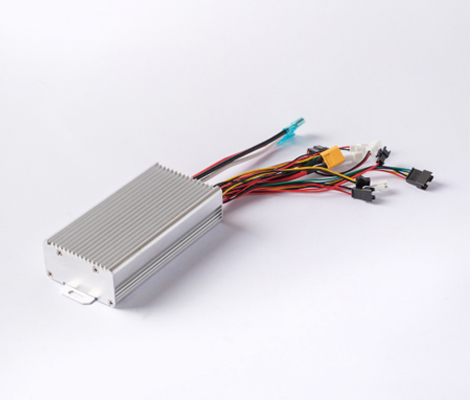

BLDC Motor Drive with DC Input (D05)
24~48VDC
500W
Application
- Electric scooters
- Agricultural machine, Industrial vehicle
- Electric truck, Electric wheelchair
Specification
- External speed command
- Speed control & current limiting function
- Convenient driving
- Operation and setting by the dedicated loader
Specification
| Item description | D05 |
|---|---|
| Rated current [A] | 20 |
| Maximum current [A] | 40 |
| Power supply | 24 ~ 48VDC |
| Control function | Speed control, 100 ~ 5,000rpm |
| Control method | Trapezoidal/Sinusoidal PWM Control |
| Input signals | Key On/Off, Throttle, F/R, Brake |
| Output signals | Speed Out, Alarm Out (Open collector type) |
| Protective functions | Over-current, Under/Over-voltage, Over-load, Over-heat, Hall sensor error |
| Feedback sensor | Hall sensor |
Connection diagram

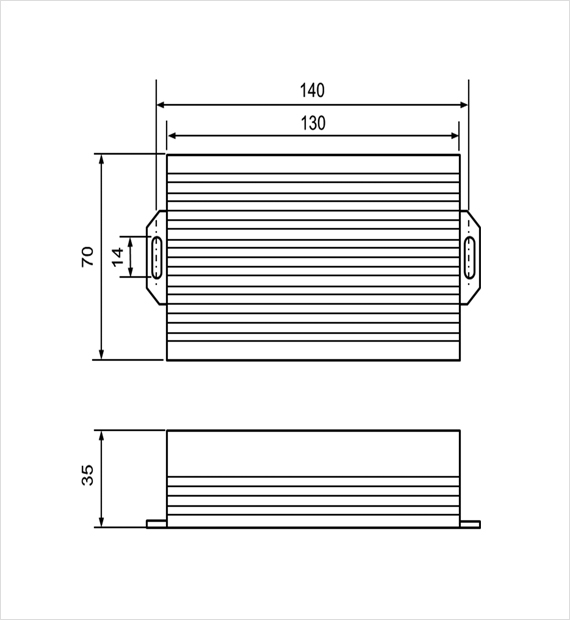

Dimension [mm]
